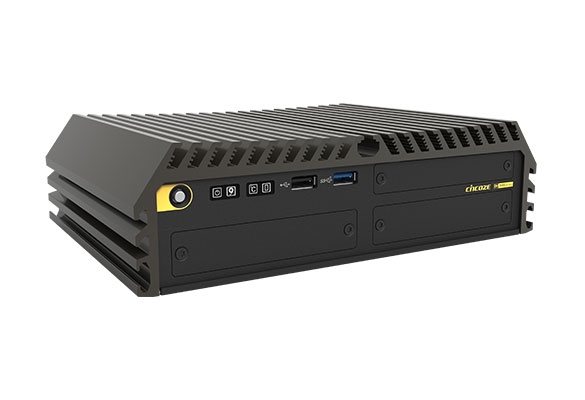

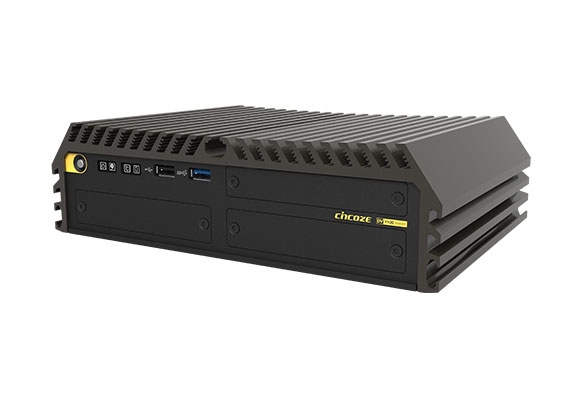

DV-1100

BTL-S/14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer
產品特點
  • Intel® BTL-S/14/13/12th Gen. Bartlett Lake-S / Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Platform (max 65 W TDP)
  • 1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
  • 1x M.2 Key E Type 2230 Socket for Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/GNSS/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 Socket for Storage/GNSS/Add-on Card Expansion
  • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
  • Wide operating temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
產品認證
  • EN 50121-3-2
  • EN 61000-6-2
  • EN 61000-6-4
  • MIL-STD-810H
  • EN 62368-1
  • CB
  • UL
  • E-Mark
加入諮詢清單 規格表
產品介紹
High-performance, Cost-effective - DV-1100

DV-1100 是一款緊湊型、高效能的嵌入式邊緣運算電腦，支援 BTL-S/14/13/12 代 Intel® 處理器。它在高效能運算需求與高性價比之間取得了完美平衡，協助企業快速分析與處理邊緣數據，進而優化決策、提升生產效率與準確性。DV-1100 非常適合智慧製造、機器視覺、軌道交通運算，以及對穩定性和可靠性要求極高且空間受限的應用場景。



效能、成本的 平衡

——

DV-1100 機身輕巧緊湊，支援 BTL-S/14/13/12 代 Intel® Core™ 處理器。它能為多工處理和多元應用提供充足的運算效能，同時兼顧效能與成本彈性。

效能、成本的平衡
緊湊 體積


緊湊 體積

——

體積僅 224.1 x 162 x 62 mm，可以輕鬆安裝在任何地方，推薦給受空間限制的場域使用。



驚艷的傳輸與 存取速度

——

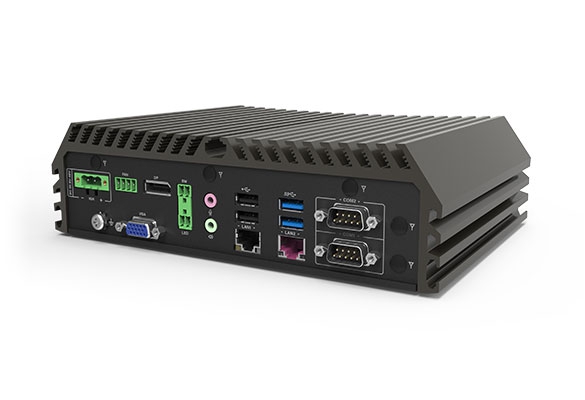

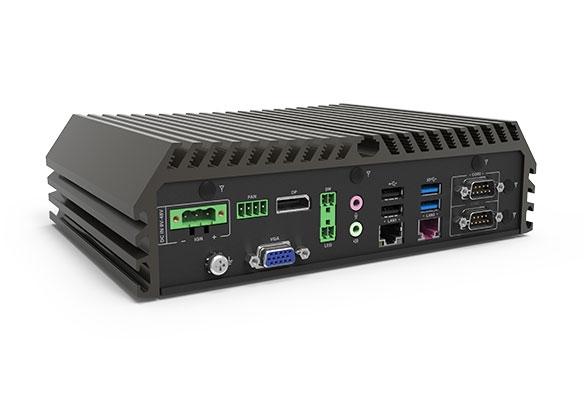

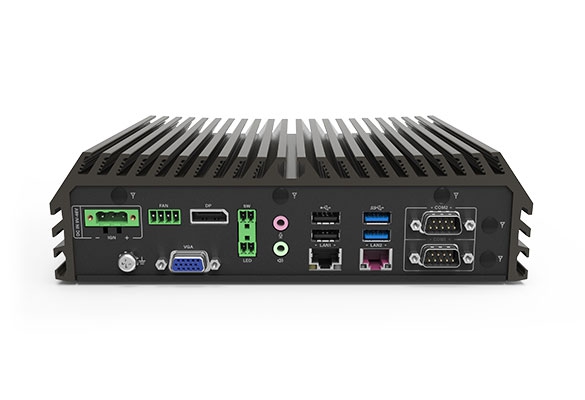

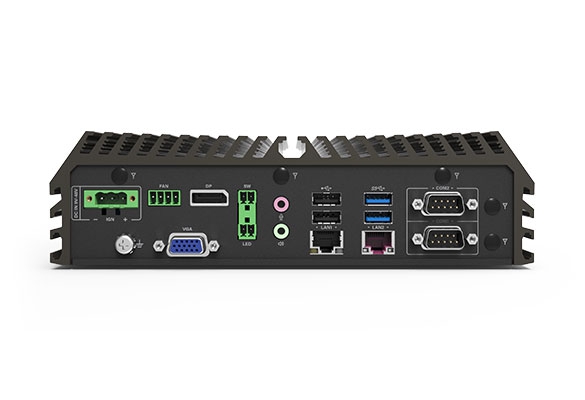

DV-1100 配備高速 I/O 接口，包括 2.5G LAN 和 10Gbps USB 3.2 Gen2x1。在儲存解決方案上，除了支持 2.5" HDD/SSD 外，還提供 NVMe SSD 的高速儲存選項。

驚艷的傳輸與 存取速度
卓越的 擴充設計


卓越的 擴充設計

——

內建 M.2 Key B、M.2 Key E、M.2 Key M 插槽，能夠依據不同的應用增添無線通訊 (5G、WIFI、GNSS) 以及儲存功能。



多款 行業認證

——

DV-1100 的強固設計通過或符合多款工業級及行業特殊認證，如工業環境下的 EMC 標準 (EN61000-6-2/4)、美國軍規衝擊震動標準 (MIL-STD-810H) 、軌道交通 EN50155（EN 50121-3-2 only）等。

多款 行業認證
影片
RESOURCES
聚焦 Embedded World，Cincoze 展現完整 Edge AI 解決方案
2026-02-24
聚焦 Embedded World，Cincoze 展現完整 Edge AI 解決方案
E-mark 認證 : 進入歐洲車載市場的關鍵門票
2025-09-02
E-mark 認證 : 進入歐洲車載市場的關鍵門票
德承完整 Edge AI 運算解決方案，強勢登場 Automate 2025
2025-04-10
德承完整 Edge AI 運算解決方案，強勢登場 Automate 2025
Embedded World 2025：德承發表最新 Edge AI 運算解決方案，助力 AIoT 應用
2025-02-20
Embedded World 2025：德承發表最新 Edge AI 運算解決方案，助力 AIoT 應用
德承強固型嵌入式電腦 搶攻 Edge AI 應用市場
2024-09-12
德承強固型嵌入式電腦 搶攻 Edge AI 應用市場
工業電腦 : 發展歷程、特性與解決方案
2024-09-10
工業電腦 : 發展歷程、特性與解決方案
德承 DV-1100：高效能基礎型工業電腦，邊緣運算的理想選擇
2024-08-27
德承 DV-1100：高效能基礎型工業電腦，邊緣運算的理想選擇
什麼是強固型電腦？探索強固型電腦的必要特性
2024-06-27
什麼是強固型電腦？探索強固型電腦的必要特性
[ 產品聚焦 ] Cincoze 邊緣計算解決方案
2024-05-21
[ 產品聚焦 ] Cincoze 邊緣計算解決方案
好事成雙! 德承推出兩款精簡緊湊型嵌入式電腦，效能升級，應用更廣
2024-03-28
好事成雙! 德承推出兩款精簡緊湊型嵌入式電腦，效能升級，應用更廣
詳細規格
Model NameDV-1100
SystemProcessor

• Bartlett Lake-S Intel® Core Series 2 P-Core Only CPU
- Intel Core™ Processor 9 273PE 12 Cores Up to 5.7 GHz, TDP 65 W
- Intel Core™ Processor 7 253PE 10 Cores Up to 5.5 GHz, TDP 65 W
- Intel Core™ Processor 5 223PE 8 Cores Up to 5.4 GHz, TDP 65 W
- Intel Core™ Processor 5 213PE 8 Cores Up to 5.2 GHz, TDP 65 W
- Intel Core™ Processor 3 201E 4 Cores Up to 4.8 GHz, TDP 60 W
- Intel Core™ Processor 9 273PTE 12 Cores Up to 5.5 GHz, TDP 45 W
- Intel Core™ Processor 7 253PTE 10 Cores Up to 5.4 GHz, TDP 45 W
- Intel Core™ Processor 5 223PTE 8 Cores Up to 5.4 GHz, TDP 45 W
- Intel Core™ Processor 5 213PTE 8 Cores Up to 5.2 GHz, TDP 45 W
- Intel Core™ Processor 3 201TE 4 Cores Up to 4.6 GHz, TDP 45 W

• Bartlett Lake-S Intel® Core Series 2 Hybrid CPU
- Intel Core™ Processor 7 251E 24 Cores Up to 5.6 GHz, TDP 65 W
- Intel Core™ Processor 5 221E 14 Cores Up to 5.2 GHz, TDP 65 W
- Intel Core™ Processor 5 211E 10 Cores Up to 4.9 GHz, TDP 65 W
- Intel Core™ Processor 7 251TE 24 Cores Up to 5.4 GHz, TDP 45 W
- Intel Core™ Processor 5 221TE 14 Cores Up to 5.0 GHz, TDP 45 W
- Intel Core™ Processor 5 211TE 10 Cores Up to 4.8 GHz, TDP 45 W

• 14th Generation Intel® Raptor Lake-S Refresh Series P-Core Only CPU:
- Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W
- Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W
- Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W
- Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W
- Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W
- Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W
- Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W
- Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W
- Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W
- Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W
- Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W
- Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W

• 14th Generation Intel® Raptor Lake-S Refresh Series Hybrid CPU:
- Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W
- Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W
- Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W
- Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W
- Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W
- Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W
- Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W

• 13th Generation Intel® Raptor Lake-S Series P-Core Only CPU:
- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
- Intel® Core™ i3-13100 4 Cores Up to 4.5 GHz, TDP 60W
- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W
- Intel® Core™ i3-13100T 4 Cores Up to 4.2 GHz, TDP 35W

• 13th Generation Intel® Raptor Lake-S Series Hybrid CPU:
- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
- Intel® Core™ i9-13900 24 Cores Up to 5.6 GHz, TDP 65W
- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
- Intel® Core™ i7-13700 16 Cores Up to 5.2 GHz, TDP 65W
- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i5-13500 14 Cores Up to 4.8 GHz, TDP 65W
- Intel® Core™ i5-13400 10 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i7-13700T 16 Cores Up to 4.9 GHz, TDP 35W
- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
- Intel® Core™ i5-13500T 14 Cores Up to 4.6 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series P-Core Only CPU:
- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
- Intel® Core™ i5-12500 6 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i5-12400 6 Cores Up to 4.4 GHz, TDP 65W
- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
- Intel® Core™ i3-12100 4 Cores Up to 4.3 GHz, TDP 60W
- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
- Intel® Pentium® G7400 2 Cores Up to 3.7 GHz, TDP 46W
- Intel® Pentium® G7400T 2 Cores Up to 3.1 GHz, TDP 35W
- Intel® Celeron® G6900 2 Cores Up to 3.4 GHz, TDP 46W
- Intel® Celeron® G6900T 2 Cores Up to 2.8 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series Hybrid CPU:
- Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
- Intel® Core™ i9-12900 16 Cores Up to 5.1 GHz, TDP 65W
- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
- Intel® Core™ i7-12700 12 Cores Up to 4.9 GHz, TDP 65W
- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W

Chipset• Intel H610E Chipset
Memory• 1x DDR5 SO-DIMM sockets, support Un-buffered and non-ECC Type memory, up to 48GB.
- Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.
- Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output• Supports Triple Independent Display
DP• 1x DisplayPort Connector: 3840 x 2160 @60Hz
VGA• 1x VGA Connector: 1920 x 1200 @60Hz
CMI Display• 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 1x 2.5GbE LAN, RJ45
- Intel® I226
• 1x 1GbE LAN, RJ45
- Intel® I219
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 1x 10Gbps USB3.2 Gen 2x1, Type A
• 2x 5Gbps USB3.2 Gen 1x1, Type A
• 3x 480Mbps USB2.0, Type A
Storage / Expansion2.5” Storage• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / SATA), Support 5G/GNSS/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 3042 (PCIe Gen 3x2 / USB2.0), Support Storage/Add-on Card Expansion
M.2 Key E Socket• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0 ), Support Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
M.2 Key M Socket• 1x M.2 Key M Type 2280 Socket (PCIe Gen 4x4 / SATA), Support Storage/Add-on Card Expansion
SIM Socket• 1x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface• 1x CMI Interface for optional CMI-Display Module Expansion
• 2x CMI Interface for optional CMI-COM/DIO Module Expansion
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Antenna Hole• 5x Antenna Holes
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption• 35W CPU: 204.46W
• 65W CPU: 307.92W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
Inrush Current (Peak)• 35W CPU: 4.362 A@24V
• 65W CPU: 4.516 A@24V
PhysicalDimension ( W x D x H )• 224.1 x 162 x 62 mm
Weight Information• 2.52 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableess Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 413,236 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu Desktop 22.04 LTS
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 45W TDP Processor: -40°C to 60°C (With External Fan Kit)
• 65W TDP Processor: -40°C to 55°C (With External Fan Kit)
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics
(without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C
Relative Humidity• 95% RH @ 70°C (Non-condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
  (**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
訂購資訊
Available Model
Model No.Description
DV-1100-R10BTL-S/14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

Package Checklist
DV-1100 Embedded Computer x1Wall Mounting Kit x1
CPU Installation Kit x1Power Terminal Block Connector x1
External Fan Terminal Block Connector x1Remote Function Terminal Block Connector x 2
Screw Pack x1M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No.Description
CMI-DP01-R10CMI Module with 1x DisplayPort
CMI-HD03-R10CMI Module with 1x HDMI Port
CMI-COM06-R10CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO06-R10CMI Module with 16DIO (8in/8out)
CFM-IGN04-R10CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
UB1603-R10Universal Bracket with 2x DB9 Cutout
UB1606-R10Universal Bracket with DP Cutout
UB1608-R10Universal Bracket with HDMI Cutout
UB1611-R10Universal Bracket with 2x RJ45 Cutout
UB1618-R10Universal Bracket with DIO Cutout
UB1633-R10Universal Bracket with 2x USB Type C Cutout for MEC-USB (M.2 interface) Expansion
UB1634-R10Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
FAN-EX104External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
GST360A24-CINAdapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI
RSD-200D-24Railway Single Output DC-DC Converter 200W / DC 24V
MEC-LAN-2002iM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board, 2x RJ45 Connector
MEC-CAN-2812iM.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board, 2x DB9 Connector
MEC-CAN-2814iM.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board, 4x DB9 Connector
MEC-COM-2032iM.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board, 2x DB9 Connector
MEC-USB-2002-SPM.2 2242/2260/2280 2 port USB 3.2 board(-0℃~+70℃), w/ IDE 20P 90° Cable, 2x USB Type A Connector, Cervoz
MEC-USB-2002CM.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0℃~+70℃), 2x USB Type C Connector, Cervoz

相關下載
Datasheet
檔案名稱發行日期下載
DV-1100 Datasheet2024/07/10下載專區
Manual
檔案名稱發行日期下載
DV-1100 User Manual2025/10/08下載專區
Driver
檔案名稱發行日期下載
DV-1100 Driver - Audio2024/06/06下載專區
DV-1100 Driver - Chipset2024/06/06下載專區
DV-1100 Driver - COM2024/06/06下載專區
DV-1100 Driver - GNA2024/06/06下載專區
DV-1100 Driver - Graphics2025/04/24下載專區
DV-1100 Driver - LAN2024/06/06下載專區
DV-1100 Driver - ME2025/04/24下載專區
Back to category
請稍等，正在載入中...
