P2002 Series

Intel® 6th Generation Core™ U Series (Skylake) Fanless Computer with CFM and CDS Interface
產品特點
  • Onboard Intel® 6th Generation Core™ U Series Processor (15W)
  • 2x DDR4 SO-DIMM Socket, Support Up to 2133MHz, 32 GB
  • Support Triple Independent Display(VGA/DVI-D/CDS)

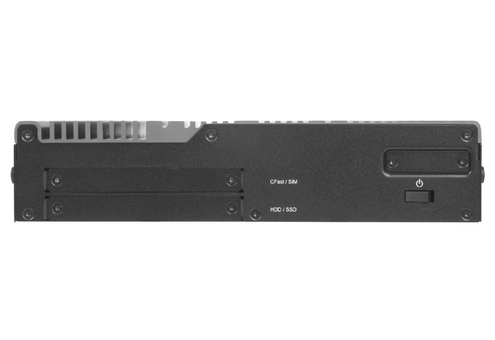

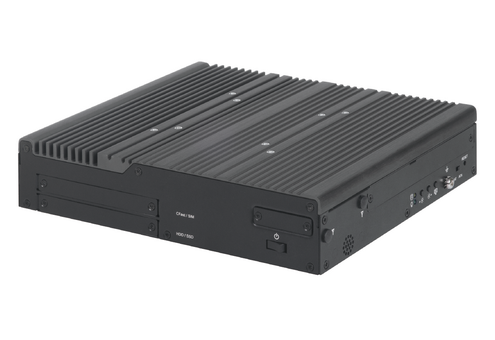

  • 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
  • 2x Full Size Mini-PCIe Socket
  • Expandable PCI/PCIe Feature (For P2002E only)
  • CFM Technology for Power Ignition Sensing & PoE Function(25.5W)

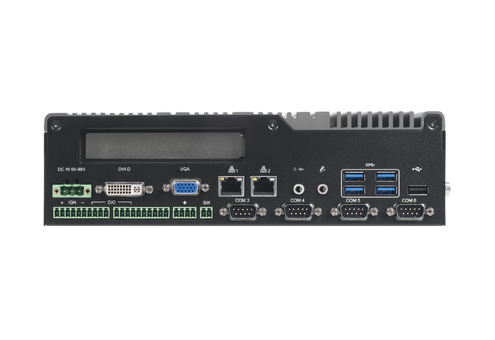

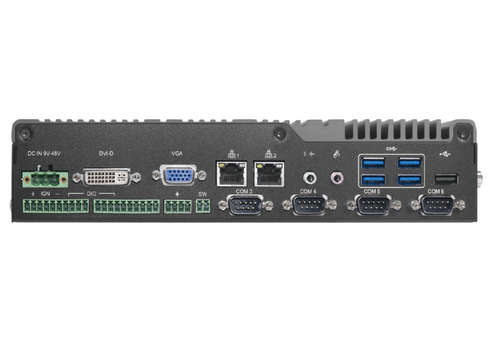

  • Rich I/O (2x GbE LAN, 5x USB, 6x COM, 16x Isolated DIO)
  • Support 0.2 sec Instant Reboot Technology
  • Supports Cincoze Patent CDS Technology (Patent No. M482908)
  • Wide Operating Temperature (-25°C to 70°C)
產品介紹
Cincoze P2002 Series is a high performance fanless embedded and display computer powered by Intel® 6th generation Core™ U series processor with only 15 watts power consumption. The advanced graphics engine support triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface. P2002 Series provides great connectivity with rich I/O including 2x GbE LAN, 5x USB and 6x COM ports. P2002 Series also supports 3 types of storage devices including 2.5" SATA HDD, CFast and mSATA. The accessible design of these storage devices allows quick data access and easy maintenance.

P2002 Series supports CFM Technology which allows you to extend PoE (max 25.5W) and IGN function with additional modules. And thanks to Cincoze’s exclusive CDS Technology, P2002 Series also acts as an engine of panel PC for CV-100 Series. P2002 Series is truly a rugged computing system by supporting wide operating temperature from -25°C to 70°C, wide range DC power input from 9V to 48V, high tolerance of shock and vibration, various kinds of industrial protection and the integrated SuperCap for battery maintenance- free, those features allow P2002 to be easily deployed in harsh environment and critical applications.
詳細規格

P2002 Series

Model NameP2002P2002E
SystemProcessorOnboard 6th Intel® Core™ U processors (Skylake)
• Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
• Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz)
• TDP: 15 W
Memory2x DDR4 2133 MHz 260-Pin SO-DIMM Socket
Support Un-buffered and Non-ECC Type up to 32 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 520
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector for Cincoze Display Module
VGA1x VGA Connector(1920 x 1080 @60Hz), DB-15
DVI-D1x DVI-D Connector (1920 x 1080 @ 60Hz)
AudioAudio CodecRealtek® ALC888, High-Definition Audio
Speaker-out1x Speaker-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Intel® I210
USB4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A)

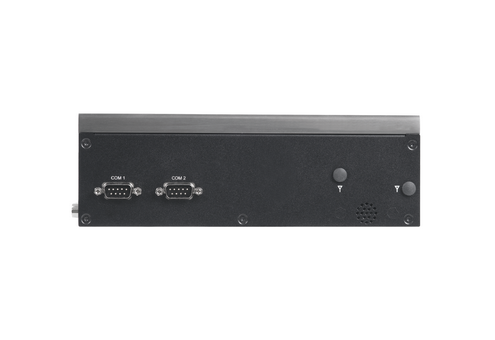

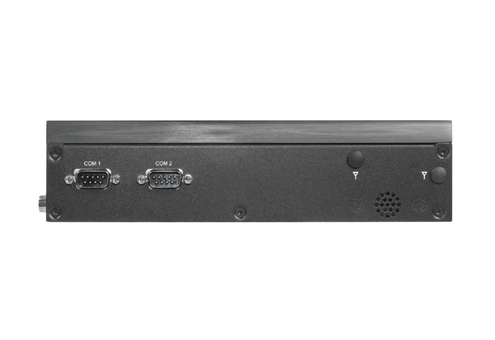

Serial Port6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block

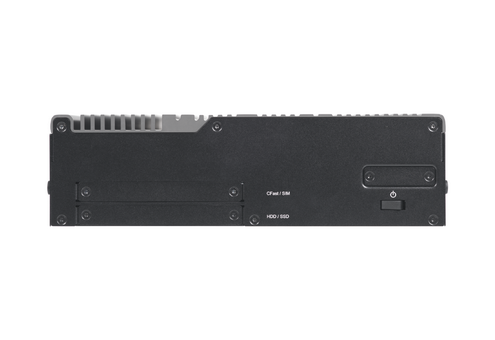

StorageSSD/HDD2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
mSATA2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
CFast1x CFast Socket (Gen3)
ExpansionMini PCI Express2x Full-size Mini-PCIe Socket

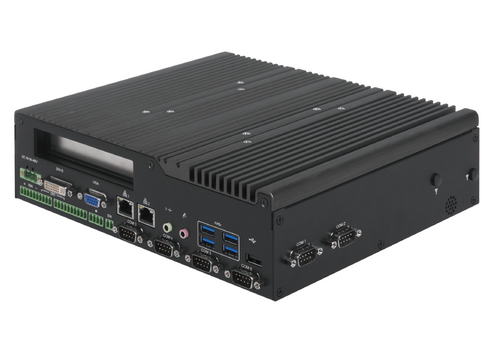

PCI Express • 1x PCI or 1x PCIe x4 Expansion slot
   (with Optional Riser Card)
• maximum dimension of add-on card:
   100mm x 200mm (H x L)
SIM Socket1 x Front Accessible SIM Socket
Universal Bracket1x Universal I/O Bracket
CFM (Control Function Module) Interface2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface, Compact PCI Connector
Other FunctionInstant RebootSupport 0.2sec Instant Reboot technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down

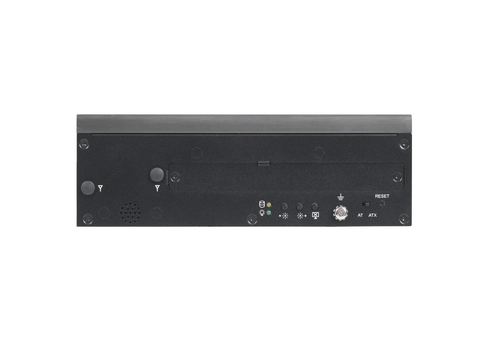

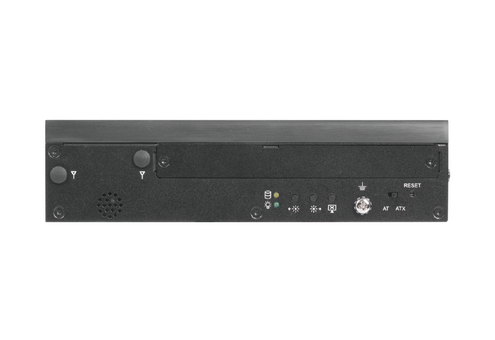

Reset Button1x Reset Button
External Fan Connector1x External Fan Connector, 4-pin Terminal Block
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
Remote Power On/Off1x Remote Power On/Off Connector, 2-pin Terminal Block
PhysicalDimension ( W x D x H )254.5 x 220 x 54mm254.5 x 220 x 72 mm
Weight Information2.92 kg3.18 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal

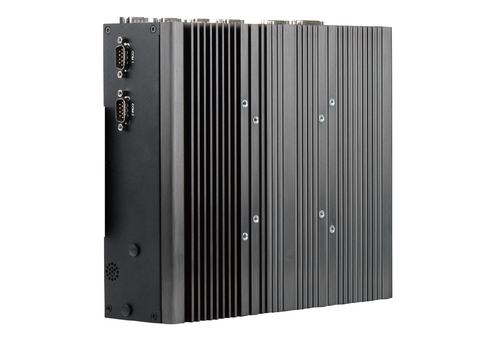

MountingWall / VESA / CDS

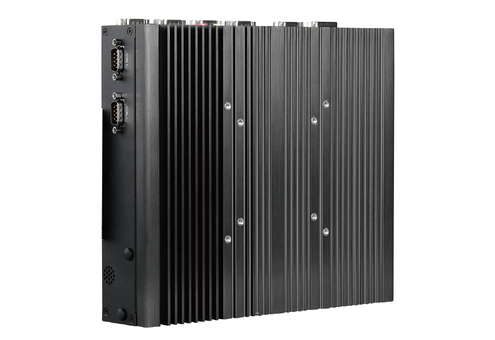

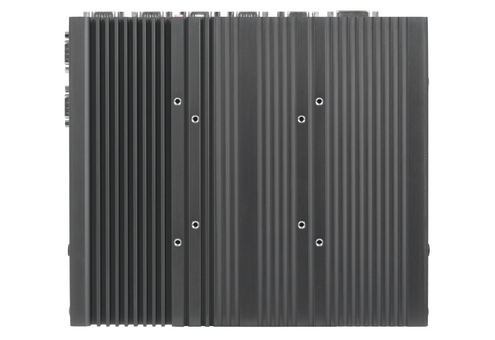

Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
Operating StystemMicrosoft® Windows®Windows®10, Windows® 8.1, Windows® 7
LinuxLinux® Kernel 4.4
EnvironmentOperating TemperatureAmbient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature-40°C to 85C
Relative Humidity95% RH @ 40˚C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
訂購資訊
Available Models
Model No.Product Description
P2002-i5-R10Intel® 6th Gen. Core™ i5-6300U Fanless Computer With CFM and CDS Interface
P2002-i3-R10Intel® 6th Gen. Core™ i3-6100U Fanless Computer With CFM and CDS Interface
P2002E-i5-R10Intel® 6th Gen. Core™ i5-6300U Expandable Fanless Computer With CFM and CDS Interface
P2002E-i5-E4-R10Intel® 6th Gen. Core™ i5-6300U Expandable Fanless Computer With CFM and CDS Interface, 1x PCIex4 Expansion
P2002E-i5-PI-R10Intel® 6th Gen. Core™ i5-6300U Expandable Fanless Computer With CFM and CDS Interface, 1x PCI Expansion
P2002E-i3-R10Intel® 6th Gen. Core™ i3-6300U Expandable Fanless Computer With CFM and CDS Interface
P2002E-i3-E4-R10Intel® 6th Gen. Core™ i3-6300U Expandable Fanless Computer With CFM and CDS Interface, 1x PCIex4 Expansion
P2002E-i3-PI-R10Intel® 6th Gen. Core™ i3-6300U Expandable Fanless Computer With CFM and CDS Interface, 1x PCI Expansion

Package Checklist
√ P2002 Series Embedded Computer x 1√ DIO Terminal Block Connector x 2
√ Wall / CDS Mounting Kit x 1√ Remote Power On/Off Terminal Block Connector x 1
√ Power Terminal Block Connector x 1√ Screw Pack x 1
√ Fan Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CFM-IGN100CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002 only)
CFM-PoE101CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 33 mm) (For P2002E only)
RC-E4-01Riser Card with 1x PCIex4 Slot (For P2002E only)
RC-PI-01Riser Card with 1x PCI Slot (For P2002E only)
MEC-COM-M212Mini-PCIe Module with 2x COM Ports
MEC-COM-M334Mini-PCIe Module with 4x RS-232/422/485 Serial Ports
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
UB05031x Universal Bracket with 2x DB9 Cutout (154 x 17 mm)
UB05041x Universal Bracket with 4x DB9 Cutout (154 x 17 mm)
UB05111x Universal Bracket with 2x RJ45 Cutout (154 x 17 mm)
UB05141x Universal Bracket with 2x USB Cutout (154 x 17 mm)
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN (For P2002E only)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
