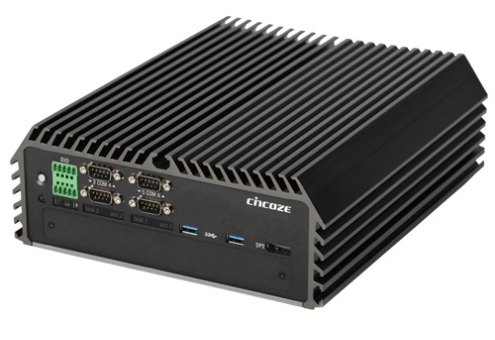

DS-1000

EOL Model
4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset
產品特點
  • Support 4th Gen. Intel® Core™ i3 / i5 / i7 Desktop Processor (LGA1150)
  • Support Intel® Q87 Chipset
  • 2x DDR3 / DDR3L SO-DIMM Max. up to 16GB
  • Three Independent Display from 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE Port, Support Wake-on-LAN and PXE
  • 4x USB 3.0 and 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI, 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay
  • 2x mSATA (1x Shared by Mini-PCIe Socket)
  • 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input, Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
  • Power Ignition
  • Compliant with EN50155 for Rail Transportation Applications
產品介紹

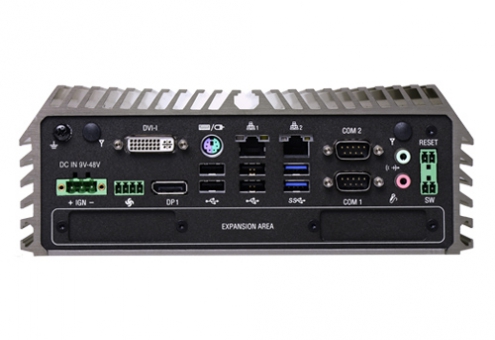

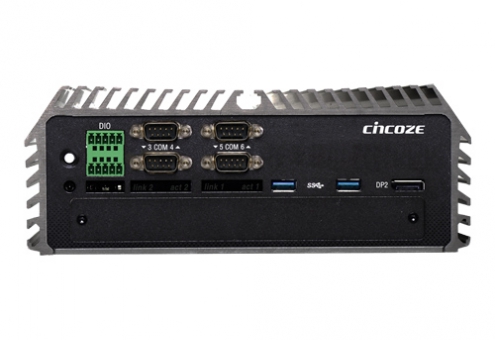

DS-1000 series is a fanless embedded system integrated with 4th generation Intel® Core™ i3 / i5 / i7 LGA1150 socket type processor, Intel® Q87 express chipset, rich I/O, and supports wide range (9~48V) DC power input. The front access designed provides fast change capability of hard drive, CMOS battery, CFast card and SIM card. With flexible installation of internal or external fan, mounting kit, and various interface expansion modules makes DS-1000 series a functional system meets versatile requirements and different usages. In addition, DS-1000 series is a ruggedized and safety system features completely cable-less designed, special heat dissipation, anti-vibration, build in voltage protection, reliable DC power input, reverse power protection, and industrial components selection. Combining superior performance and innovative mechanical design, DS-1000 series is an ideal choice for industrial applications.
詳細規格
Model NameDS-1000
Processor SystemCPUIntel® 4th Generation
G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported
Frequency2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz
Core Number2 / 2 / 2 / 4
BIOSAMI 128Mbit SPI
ChipsetIntel® Q87
MemoryTechnologyDDR3 / DDR3L 1333MHz / 1600MHz (un-buffered and non-ECC)
Max. Capacity16 GB
Socket2x 204-Pin SO-DIMM
DisplayVGAYes (w/ Optional Split Cable)
DDI (HDMI/DVI/DisplayPort)1x DVI
2x DisplayPort
Multiple DisplayTriple
ExpansionPCI-
PCIe-
Mini PCIe2x Full-size Mini PCIe
EthernetControllerGbE1: Intel® 82583V
GbE2: Intel® i217LM
Support Wake-on-LAN and PXE
PoE-
Speed10/100/1000 Mbps
AudioCodecRealtek ALC888S
Connector1x Mic-in
1x Speak-out
WatchDog TimerSoftware Programmable
Supports 1~255 sec. System Reset
StorageSSD / HDD2x 2.5" SATA SSD/HDD Bay
mSATA2x mSATA (1x Shared by Mini-PCIe Socket)
CompactFlash/CFast1x CFast
SIM Socket1
I/O PortsUSB 3.04
USB 2.04
DIO4 in / 4 out
COM Port6x RS-232/422/485
PS/21x KB/MS
Antenna Hole2
Power Switch1
AT/ATX Switch1
External Fan ConnectorYes
Remote Power On/Off and Remote Power ResetYes
Universal I/O Bracket2
PowerPower TypeAT, ATX
Power Supply Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 24V/5A, 120W
Environment
Operating Temperature
Ambient with air flow: -10°C to 60°C  (with Industrial Grade Peripherals)
Storage Temperature-20°C to 80°C
Relative Humidity10%~95% (non-condensing)
PhysicalDimension (WxDxH, mm)227 x 261 x 85.8 mm
Weight4.7 kg
ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall
Operating SystemMicrosoft® Windows®• Windows® 8             • Windows® Embedded Standard 8
• Windows® 7             • Windows® Embedded Standard 7
CertificationSafety Certifications• CE                  • FCC Class A
• EN 50155      • EN 50121-3-2
訂購資訊
Available Models
Model No.Product Description
DS-10004th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset

Package Checklist
DS-1000
√ DS-1000 Embedded System x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 2
√ Power Terminal Block Connector x 1
√ Remote Power Terminal Block Connector x 2
√ External Fan Terminal Block Connector x 1
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1
√ Wall Mount Kit x 1
√ Heat Sink Kit x 1

Optional Accessories
Model No.Description
GS120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
59381560000EMINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM
N0307-140507-01DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm
