CV-112
EOL Model
12.1" TFT SVGA 4:3 Display Module with Resistive 5-wire / Projected Capacitive Touch
產品特點
- 12.1" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- 50,000 hrs LED Backlight Life
- Resolution up to 800 x 600 (SVGA)
- 450 nits Brightness
- Designed with Aluminum Die-cast Front Frame
- IP 65 Compliant Front Panel
- Convertible Display System (CDS) Supported
產品介紹

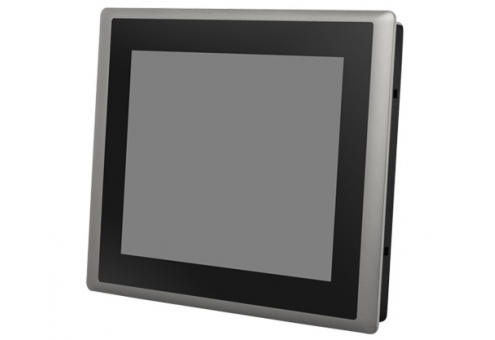

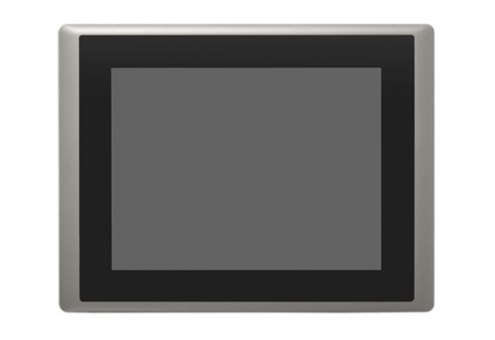

CV-112 is 12.1" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 800x600 (SVGA) and 450 nits brightness. CV-112 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-112 allows you to configure, upgrade and maintain your Convertible Display System easily.
詳細規格
Model Name | CV-112 | ||
Model No. | CV-112R | CV-112C | |
Display | LCD Size | 12.1" (4:3) | |
Max. Resolution | 800 x 600 | ||
Brightness (cd/m2) | 450 | ||
Contrast Ratio | 800 : 1 | ||
LCD Color | 262K | ||
Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
Viewing Angle (H-V) | 160 / 140 | ||
Backlight MTBF | 50000 hrs (LED Backlight) | ||
Touch | Resistive 5-wire | V | - |
Projected Capacitive | - | V | |
Environment | Operating Temperature | Ambient with Air flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
Storage Temperature | -30°C to 80°C | ||
Relative Humidity | 80% RH @ 40°C (non-condensing) | ||
IP Level | IP 65 Compliant Front Panel | ||
Physical | Dimension (WxHxD, mm) | 345 x 265.3 x 57 mm | |
Weight | 3.16 kg | ||
Construction Front Panel | Die-cast Flat Surface | ||
Certification | Safety Certifications | • CE • FCC Class A |
訂購資訊
Available Models
Package Checklist
Model No. | Product Description |
CV-112R | 12.1" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch |
CV-112C | 12.1" TFT SVGA 4:3 Display Module with Projected Capacitive Touch |
Package Checklist
CV-112 |
√ CV-112 Display Module x 1 |
√ Panel Mounting Kit x 1 |
