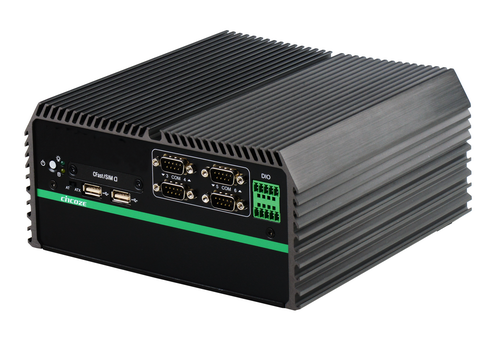

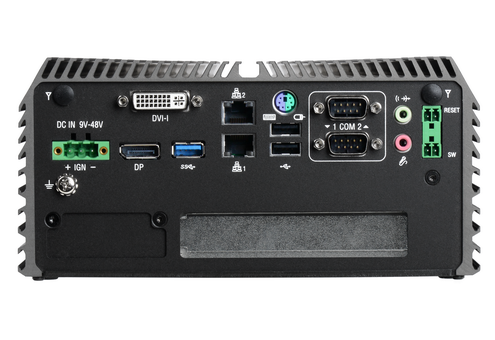

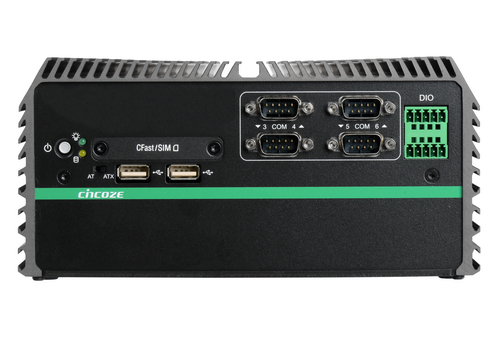

DE-1001

Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer and 1x PCI/PCIe Expansion
產品特點
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 2x DDR3L SO-DIMM Max. up to 8GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE Ports, Support Wake-on-LAN and PXE
  • 1x USB 3.0, 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI, 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay, 1x mSATA (Shared by Mini-PCIe Socket)
  • 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input, Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
  • 1x PCI or 1x PCIe x1 Expansion
  • Power Ignition
  • EN50121-3-2 Certified/ EN62368-1
產品介紹
DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability.

Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card.

Supporting power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc.

DE-1000 series supports wide temperature range from -20°C to +70°C, wide range (9~48V) DC power input, power protection, cable free and one-piece housing design, as well as compliant with EN50121-3-2 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.
詳細規格
Model NameDE-1001-EDE-1001-P
Processor SystemCPUIntel® Atom™ E3845
Frequency1.91 GHz
Core Number4
BIOSAMI 64Mbit SPI
Chipset-
MemoryTechnologyDDR3L 1066 / 1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket2x 204-Pin SO-DIMM
DisplayVGAYes (w/ Optional Split Cable)
DDI (HDMI/DVI/DisplayPort)1x DVI-I
1x DisplayPort Connector (2560 x 1600)
Multiple DisplaySupport Dual Display
ExpansionPCI Express1x PCIe x1 (DE-1001-E Only)
1x PCI (DE-1001-P Only)
*Add-on card size support varies by MEC module, please refer to the datasheet for details
Mini PCI Express2x Full-size Mini PCIe
EthernetControllerGbE1: Intel® i210
GbE2: Intel® i210
Support Wake-on-LAN and PXE
PoE-
Speed10/100/1000 Mbps
AudioCodecRealtek ALC888S
Connector1x Mic-in, 1x Line-out
WatchDog TimerSoftware Programmable Supports 256 Levels System Reset
StorageSSD / HDD2x 2.5" SATA HDD Bay
mSATA1x mSATA (shared by Mini-PCIe socket)
CompactFlash/CFast1x CFast
SIM Socket1
I/O PortsUSB1x 5Gbps USB 3.2 Gen1, Type A
4x 480Mbps USB 2.0, Type A
DIO4 in/4 out
COM Port6x RS-232/422/485
PS/21x KB/MS
Antenna Hole2
Power Switch1
AT/ATX Switch1
External Fan Connector-
Remote Power On/Off and Remote Power ResetYes
Universal I/O Bracket1
PowerPower TypeAT, ATX
Power Supply Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
EnvironmentOperating TemperatureAmbient with air flow: -25°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
PhysicalDimension (WxDxH)203 x 200 x 96.5 mm
Weight3.40 kg
ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall Mounting
Operating SystemMicrosoft® Windows®• Windows® 10
• Windows® 8             • Windows® Embedded 8 Standard
• Windows® 7             • Windows® Embedded Standard 7
Linux®Supports By Project
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
訂購資訊
Available Models
Model No.Product Description
DE-1001-EIntel® Atom™ E3845 Quad Core Power Efficient Fanless Computer with 1x PCIe x1 Expansion
DE-1001-PIntel® Atom™ E3845 Quad Core Power Efficient Fanless Computer with 1x PCI Expansion

Package Checklist
√ DE-1001 Embedded System x 1
√ DIO Terminal Block Connector x 2
√ Power Terminal Block Connector x 1
√ Remote Power Terminal Block Connector x 2
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1
√ Wall Mount Kit x 1

Optional Modules & Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, Level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M
VESA-DEDE series VESA Mount Kit
SIDE-DEDE series SIDE Mount Kit
DINRAILDiamond series DIN-RAIL Mount Kit
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30Mini-PCIe Module with 2x USB3.2 Gen1 Ports, 1x 30cm cable
UB0211Universal Bracket with 2x RJ45 Cutout
UB0214Universal Bracket with 2x USB Cutout
相關下載
Datasheet
檔案名稱發行日期下載
DE-1001 Datasheet2019/07/23下載專區
Manual
檔案名稱發行日期下載
DE-1000 Series Manual2023/05/03下載專區
Driver
檔案名稱發行日期下載
DE-1000 Series Chipset Driver (Windows_7_8.1_10)2017/10/11下載專區
DE-1000 Series USB 3.0 Driver (Windows_7)2017/10/11下載專區
DE-1000 Series Audio Driver (Windows_7_8.1_10)2017/10/11下載專區
DE-1000 Series LAN Driver (Windows_7_8.1_10)2017/10/11下載專區
DE-1000 Series VGA Driver (Windows_7_8.1_10)2017/10/11下載專區
DE-1000 Series UART Driver (Windows_7_8.1_10)2017/10/11下載專區
DE-1000 Series MCU Driver (Windows_7_8.1)2017/10/11下載專區
DE-1000 Series ASM1061 SATA Controller (Windows_10)2017/10/11下載專區
DE-1000 Series MBI & TXE (Windows_8.1_10)2017/10/11下載專區
