顯示螢幕模組 (CV-100系列)

顯示螢幕模組 (CV-100系列)

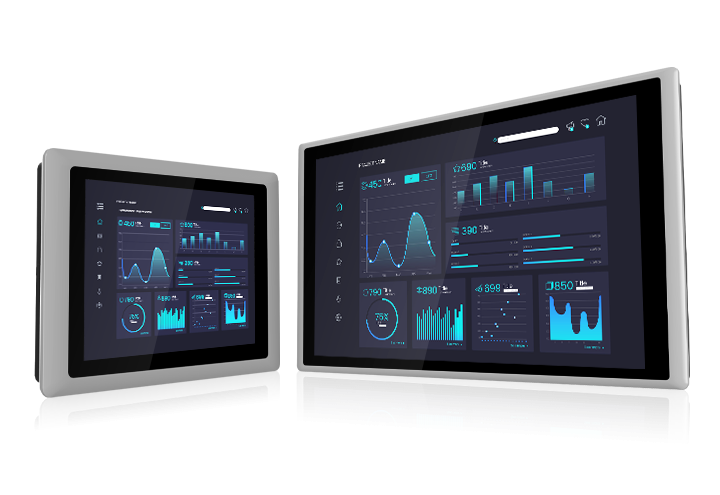

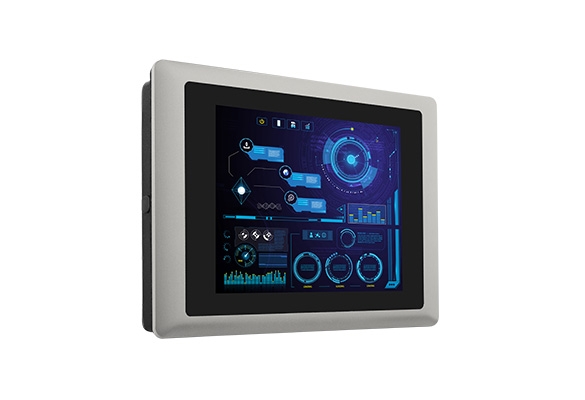

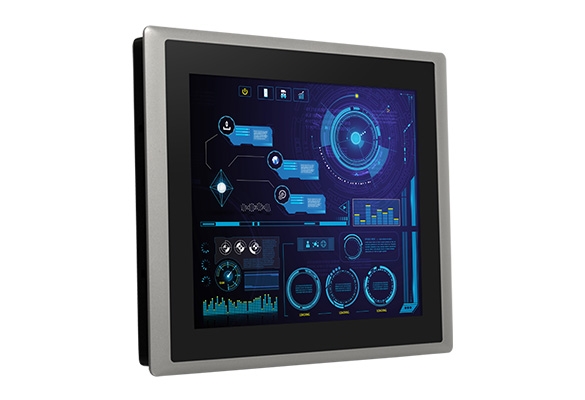

CV-100 Series is Convertible Display Module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1920 x 1080 (Full HD) and brightness up to 500 nits.

CV-100 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with the aluminum die-cast front frame, it is rugged and reliable for industrial applications and harsh environment.

With supporting for Convertible Display System (CDS Technology) CV-100 Series allows you to configure and upgrade your Convertible Display System with the maintenance-free operation.
ProductModel NameLCD SizeTouch TypeResolution / Brightness
CV-108CV-1088.4" TFT-LCDResistive800x600 (SVGA) / 400 nits
CV-110CV-11010.4" TFT-LCDResistive / Capacitive800x600 (SVGA) / 400 nits
CV-110HCV-110H10.4" TFT-LCDResistive / Capacitive1024x768 (XGA) / 400 nits
CV-112CV-11212.1" TFT-LCDResistive / Capacitive800x600 (SVGA) / 450 nits
CV-112HCV-112H12.1" TFT-LCDResistive / Capacitive1024x768 (XGA) / 500 nits
CV-115CV-11515" TFT-LCDResistive / Capacitive1024x768 (XGA) / 350 nits
CV-W115CV-W11515.6" TFT-LCDResistive / Capacitive1366X768 (WXGA) / 400 nits
CV-117CV-11717" TFT-LCDResistive / Capacitive1280x1024 (SXGA) / 350 nits
CV-119CV-11919" TFT-LCDResistive / Capacitive1280x1024 (SXGA) / 350 nits
CV-W121CV-W12121.5"TFT-LCDResistive / Capacitive1920x1080 (Full HD) / 300 nits
