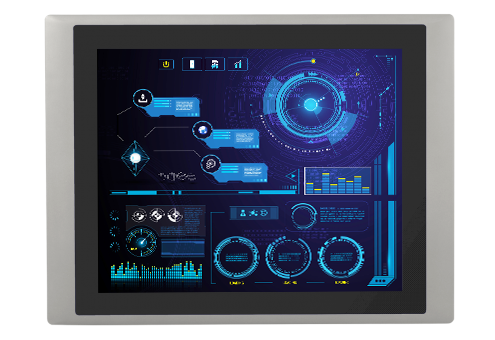

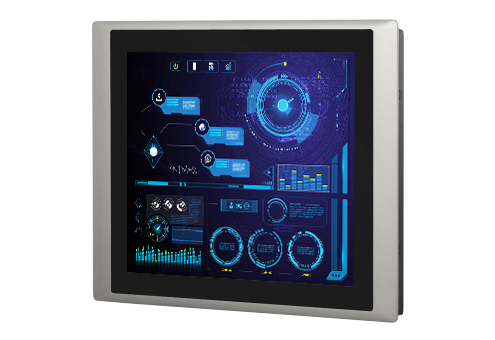

CV-119 / P2002 Series

19" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology

PRODUCTS FEATURES
  • 19" SXGA TFT-LCD with Resistive 5-wire / Projected Capacitive Touch
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
  • Integrated Intel® HD Graphics 520 Support Triple Display
  • 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
  • IP65 Compliant Aluminum Die-Cast Front Frame
  • 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Support CFM Technology for PoE and Ignition Sensing Functions
  • Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
  • Support Instant Reboot Technology
  • Wide Operating Temperature (-20°C to 70°C)
  • SuperCap integrated for CMOS Battery Maintenance-Free
  • PCI/PCIe Expandable Version Available (For P2002E only)
OVERVIEW
Cincoze CV-119/P2002 Series is a 19” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power.

The CV-119/P2002 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-119/P2002 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.

The CV-119/P2002 Series is a truly rugged computing system supporting wide operating temperature from 0°C to 50°C, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-119/P2002 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.

Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION

CV-119 Series

Model NameCV-119RCV-119CCV-119G
DisplayLCD Size19" (5:4)
Max. Resolution1280 x 1024
Brightness (cd/m2)350
Contract Ratio1000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.294 (H) x 0.294 (V)
Viewing Angle (H-V)170 / 160
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected CapacitiveGlass Screen
PhysicalDimension (W x D x H)510 x 389.3 x 63.2 mm
Weight Information6.96 kg
Mechanical ConstructionDie-Casting Flat Surface
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature0°C to 50°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature-20°C to 60°C
Relative Humidity80% RH @ 50°C (non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P2002 Series

Model NameP2002P2002E
SystemProcessorOnboard 6th Intel® Core™ U processors (Skylake)
• Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
• Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz)
• TDP: 15 W
Memory2x DDR4 2133 MHz 260-Pin SO-DIMM Socket
Support Un-buffered and Non-ECC Type up to 32 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 520
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector for Cincoze Display Module
VGA1x VGA Connector(1920 x 1080 @60Hz), DB-15
DVI-D1x DVI-D Connector (1920 x 1080 @ 60Hz)
AudioAudio CodecRealtek® ALC888, High-Definition Audio
Speaker-out1x Speaker-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Intel® I210
USB4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A)
Serial Port6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block
StorageSSD/HDD2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
mSATA2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
CFast1x CFast Socket (Gen3)
ExpansionMini PCI Express2x Full-size Mini-PCIe Socket
PCI Express • 1x PCI or 1x PCIe x4 Expansion slot
   (with Optional Riser Card)
• maximum dimension of add-on card:
   100mm x 200mm (H x L)
SIM Socket1 x Front Accessible SIM Socket
Universal Bracket1x Universal I/O Bracket
CFM (Control Function Module) Interface2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface, Compact PCI Connector
Other FunctionInstant RebootSupport 0.2sec Instant Reboot technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
External Fan Connector1x External Fan Connector, 4-pin Terminal Block
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
Remote Power On/Off1x Remote Power On/Off Connector, 2-pin Terminal Block
PhysicalDimension ( W x D x H )254.5 x 220 x 54mm254.5 x 220 x 72 mm
Weight Information2.92 kg3.18 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
Operating StystemMicrosoft® Windows®Windows®10, Windows® 8.1, Windows® 7
LinuxLinux® Kernel 4.4
EnvironmentOperating TemperatureAmbient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature-40°C to 85C
Relative Humidity95% RH @ 40˚C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-119R-R10/P2002-i5-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CV-119R-R10/P2002E-i5-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface
CV-119R-R10/P2002E-i5-E4-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CV-119R-R10/P2002E-i5-PI-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, 1x PCI Expansion
CV-119C-R11/P2002-i5-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CV-119C-R11/P2002E-i5-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface
CV-119C-R11/P2002E-i5-E4-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CV-119C-R11/P2002E-i5-PI-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion
CV-119G-R10/P2002-i5-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CV-119G-R10/P2002E-i5-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface
CV-119G-R10/P2002E-i5-E4-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CV-119G-R10/P2002E-i5-PI-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion
CV-119R-R10/P2002-i3-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CV-119R-R10/P2002E-i3-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface
CV-119R-R10/P2002E-i3-E4-R1019" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CV-119R-R10/P2002E-i3-PI-R10 19" TFT SXGA 5:4 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, 1x PCI Expansion
CV-119C-R11/P2002-i3-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface
CV-119C-R11/P2002E-i3-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface
CV-119C-R11/P2002E-i3-E4-R1019" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CV-119C-R11/P2002E-i3-PI-R10 19" TFT SXGA 5:4 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion
CV-119G-R10/P2002-i3-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface
CV-119G-R10/P2002E-i3-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface
CV-119G-R10/P2002E-i3-E4-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CV-119G-R10/P2002E-i3-PI-R1019" TFT SXGA 5:4 Panel PC without Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion

Model Configuration
 CV-119RCV-119CCV-119GP2002(i3/i5)P2002E(i3/i5/E4/PI)
CV-119R/P2002V----V--
CV-119C/P2002--V--V--
CV-119G/P2002----VV--
CV-119R/P2002EV------V
CV-119C/P2002E--V----V
CV-119G/P2002E----V--V

Package Checklist
√ CV-119/P2002 Series Panel PC x 1√ Power Terminal Block Connector (Female) x 1
√ Panel Mounting Kit x 1√ Screw Pack x 1
√ Fan Terminal Block Connector x 1√ Remote Power On/Off Terminal Block Connector x 1
√ DIO Terminal Block Connector (Female) x 2

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable
MEC-COM-M334-TDB9Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports
CFM-IGN100CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002 only)
CFM-PoE101PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002E only)
RC-E4-01Riser Card with 1x PCIex4 Slot(For P2002E only)
RC-PI-01Riser Card with 1x PCI Slot(For P2002E only)
UB0503Universal Bracket with 2x DB9 Cutout
UB0504Universal Bracket with 4x DB9 Cutout
UB0511Universal Bracket with 2x RJ45 Cutout
UB0514Universal Bracket with 2x USB Cutout
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-119 / P2002 Series Datasheet2023/07/27Download
Manual
SubjectRelease DateDownload
CV-100 / P2002 Series Manual2024/02/22Download
Driver
SubjectRelease DateDownload
P2000 Series Audio Driver (32 bit) (Windows Version)2016/09/29Download
P2000 Series Audio Driver (64 bit) (Windows Version)2016/09/29Download
P2000 Series Chipset Driver (Windows Version)2016/09/29Download
P2000 Series UART Driver (Windows Version)2016/09/29Download
P2000 Series Graphics Driver (32 bit) (Windows Version)2016/09/29Download
P2000 Series Graphics Driver (64 bit) (Windows Version)2016/09/29Download
P2000 Series MCU Driver (32 bit) (Windows Version)2016/09/29Download
P2000 Series MCU Driver (64 bit) (Windows Version)2016/09/29Download
P2000 Series Skylake MEI Driver (32 bit) (Windows 7)2016/09/29Download
P2000 Series Skylake MEI Driver (64 bit) (Windows 7)2016/09/29Download
P2000 Series Skylake MEI Driver (64 bit) (Windows 8, Windows 10)2016/09/29Download
P2000 Series LAN Driver (Windows Version)2016/09/29Download
P2000 Series Serial I/O Driver (Windows 7)2016/09/29Download
P2000 Series Serial I/O Driver (Windows 8, Windows 10)2016/09/29Download
P2000 Series RAID Driver (Windows Version)2016/09/29Download
P2000 Series USB 3.0 Driver (Windows 7)2016/09/29Download
P2000 Series USB 3.0 Driver (Windows 8)2016/09/29Download
Projected Capacitive Touch Calibration Tool2016/10/21Download
Resistive Touch Driver (Windows Version)2016/10/21Download
Resistive Touch Driver (Linux Version)2016/10/21Download
Back to category
Loading...
