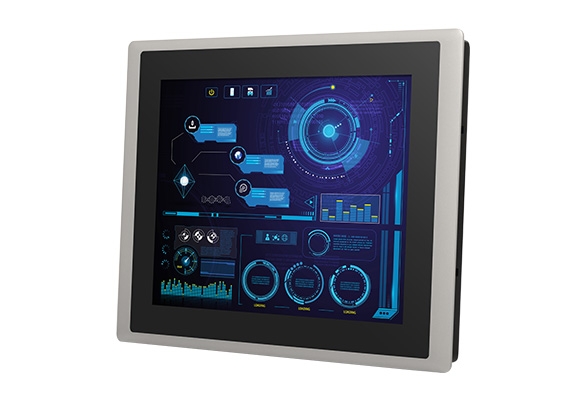

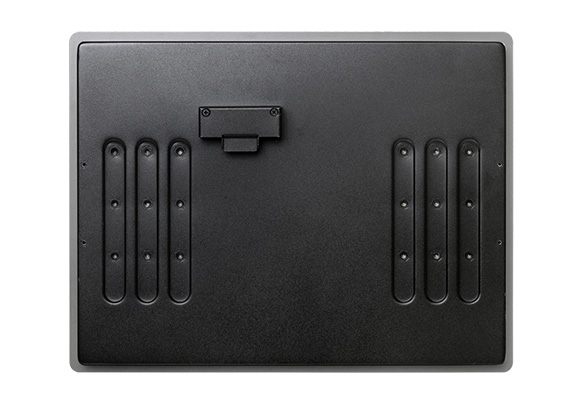

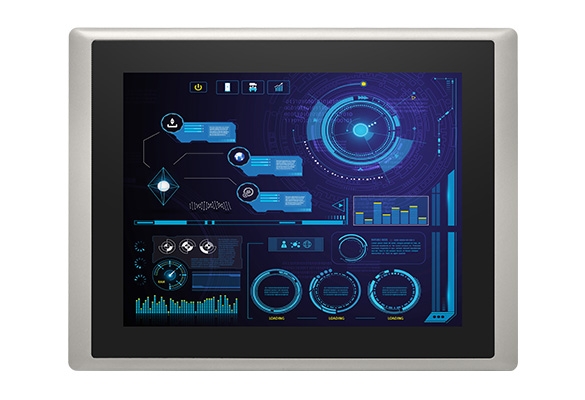

12.1" TFT XGA 4:3 Display Module with Resistive 5-wire / Projected Capacitive Touch
  • 12.1" XGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 30,000 hrs LED Backlight Life
  • Resolution up to 1024 x 768 (XGA)
  • 500 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
CV-112H is a 12.1" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1024 x 768 (XGA) and 500 nits brightness. CV-112H features flat surface and IP65 dust/waterproof front panel. In addition, designed withaluminum die-cast front frame, it is rugged and reliable for  industrial  environment. With Convertible Display System (CDS) technology support, CV-112H allows you to configure, upgrade and maintain your Convertible Display System easily.
Model NameCV-112H
Model No.CV-112HRCV-112HC
DisplayLCD Size12.1" (4:3)
Max. Resolution1024 x 768
Brightness (cd/m2)500
Contrast Ratio700 : 1
LCD Color16.2M
Pixel Pitch (mm)0.24 (H) x 0.24 (V)
Viewing Angle (H-V)160 / 160
Backlight MTBF30,000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 75°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 80°C
Relative Humidity90% RH @ 40°C (non-condensing)
IP LevelIP 65 Compliant Front Panel
PhysicalDimension (WxHxD, mm)345 x 265.3 x 57 mm
Weight3.16 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
Available Models
Model No.Product Description
CV-112HR12.1" TFT XGA 4:3 Display Module with Resistive 5-wire Touch
CV-112HC12.1" TFT XGA 4:3 Display Module with Projected Capacitive Touch
Package Checklist
√ CV-112H Display Module x 1
√ Panel Mounting Kit x 1
SubjectRelease DateDownload
CV-112H Datasheet2016/12/22Download
