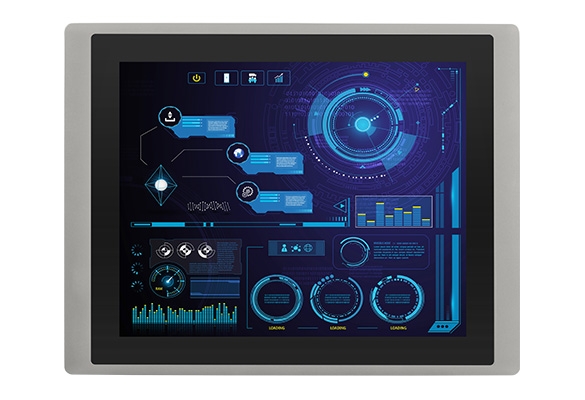

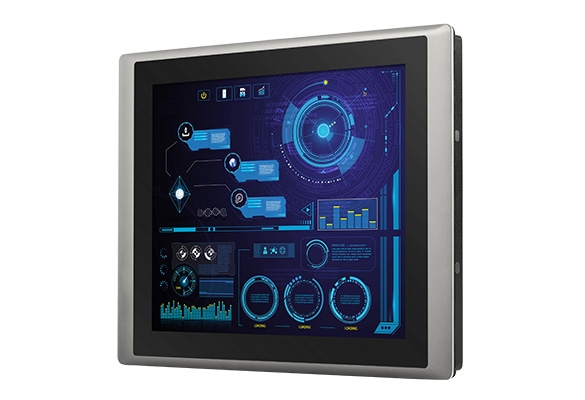

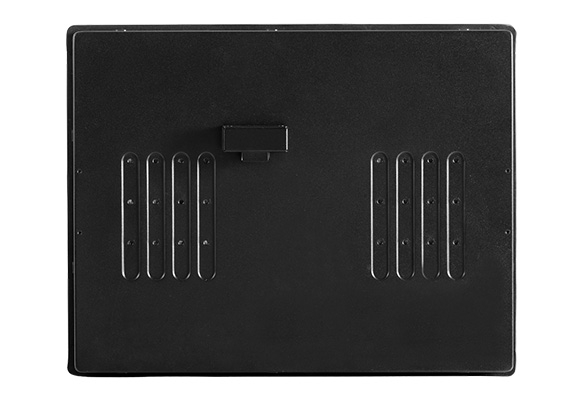

CV-117

17" TFT SXGA 5:4 Display Module with Resistive 5-wire / Projected Capacitive Touch
PRODUCTS FEATURES
  • 17" TFT SXGA 5:4 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 1280 x 1024 (SXGA)
  • 350 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
OVERVIEW
CV-117 is 17" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1280x1024 (SXGA) and 350 nits brightness. CV-117 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-117 allows you to configure, upgrade and maintain your Convertible Display System easily.
SPECIFICATION
Model NameCV-117
Model No.CV-117RCV-117C
DisplayLCD Size17" (5:4)
Max. Resolution1280 x 1024 (SXGA)
Brightness (cd/m2)350
Contrast Ratio800 : 1
LCD Color16.7M
Pixel Pitch (mm)0.264 (H) x 0.264 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
EnvironmentOperating TemperatureAmbient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 80°C
Relative Humidity80% RH @ 50°C (non-condensing)
IP LevelIP65 Compliant Front Panel
PhysicalDimension (WxHxD)450 x 350 x 63.2 mm
Weight5.64 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-117R17" TFT SXGA 5:4 Display Module with Resistive 5-wire Touch
CV-117C17" TFT SXGA 5:4 Display Module with Projected Capacitive Touch

Package Checklist
CV-117
√ CV-117 Display Module x 1
√ Panel Mounting Kit x 1


DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-117 Datasheet2015/12/22Download
