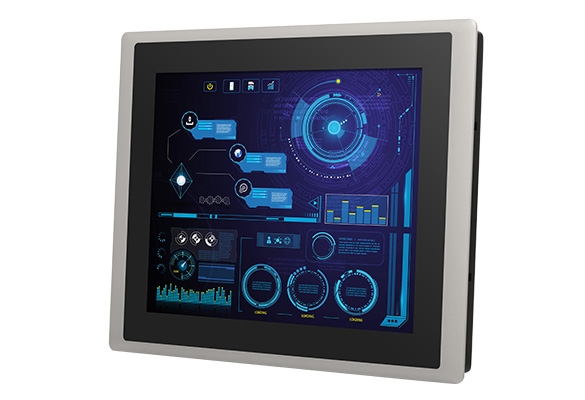

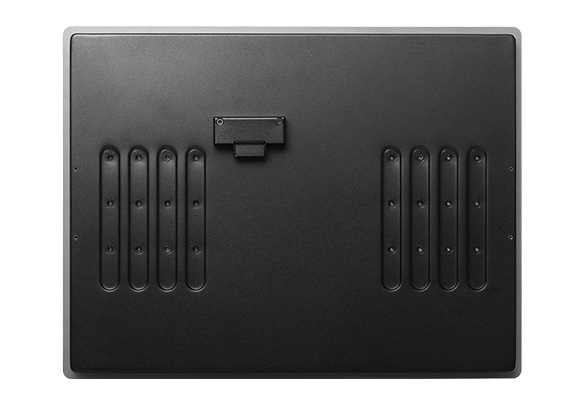

CV-115

15" TFT XGA 4:3 Display Module with Resistive 5-wire / Projected Capacitive Touch
PRODUCTS FEATURES
  • 15" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 1024 x 768 (XGA)
  • 350 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
OVERVIEW
CV-115 is 15" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1024x768 (XGA) and 350 nits brightness. CV-115 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-115 allows you to configure, upgrade and maintain your Convertible Display System easily.
SPECIFICATION
Model NameCV-115
Model No.CV-115RCV-115C
DisplayLCD Size15" (4:3)
Max. Resolution1024 x 768 (XGA)
Brightness (cd/m2)350
Contrast Ratio700 : 1
LCD Color16.2M
Pixel Pitch (mm)0.297 (H) x 0.297 (V)
Viewing Angle (H-V)170 / 160
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
EnvironmentOperating TemperatureAmbient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)
Storage Temperature-20°C to 65°C
Relative Humidity80% RH @ 50°C (non-condensing)
IP LevelIP65 Compliant Front Panel
PhysicalDimension (WxHxD)408 x 312.4 x 59.2 mm
Weight4.36 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-115R15" TFT XGA 4:3 Display Module with Resistive 5-wire Touch
CV-115C15" TFT XGA 4:3 Display Module with Projected Capacitive Touch

Package Checklist
CV-115
√ CV-115 Display Module x 1
√ Panel Mounting Kit x 1


DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-115 Datasheet2015/12/22Download
