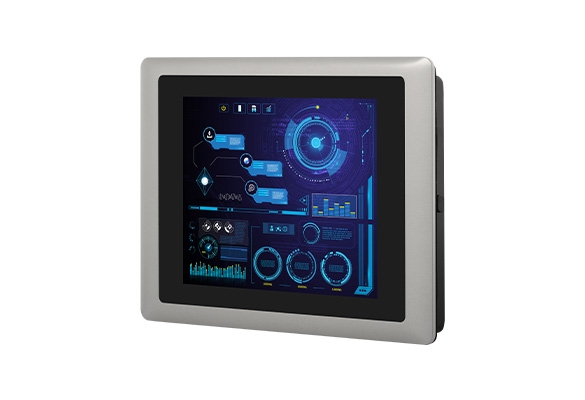

CV-108

8.4" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
PRODUCTS FEATURES
  • 8.4" SVGA TFT 4:3 LCD with Resistive 5-wire Touch
  • 30,000 hrs LED Backlight Life
  • Resolution up to 800 x 600 (SVGA)
  • 400 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
OVERVIEW
CV-108 is 8.4" LCD display module with resistive 5-wire touch screen. It offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-108 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-108 allows you to configure, upgrade and maintain your Convertible Display System easily.
SPECIFICATION
Model NameCV-108
DisplayLCD Size8.4" (4:3)
Max. Resolution800 x 600 (SVGA)
Brightness (cd/m2)400
Contrast Ratio600 : 1
LCD Color262K
Pixel Pitch (mm)0.213 (H) x 0.213 (V)
Viewing Angle (H-V)150 / 130
Backlight MTBF30000 hrs (LED Backlight)
TouchResistive 5-wireV
Projected Capacitive-
EnvironmentOperating TemperatureAmbient with air flow: -20°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 80°C
Relative Humidity90% RH @ 60°C (non-condensing)
IP LevelIP65 Compliant Front Panel
PhysicalDimension (WxHxD)262 x 186.2 x 56.2 mm
Weight1.62 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-108R8.4" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch

Package Checklist
CV-108
√ CV-108 Display Module x 1
√ Panel Mounting Kit x 1

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-108 Datasheet2016/12/22Download
