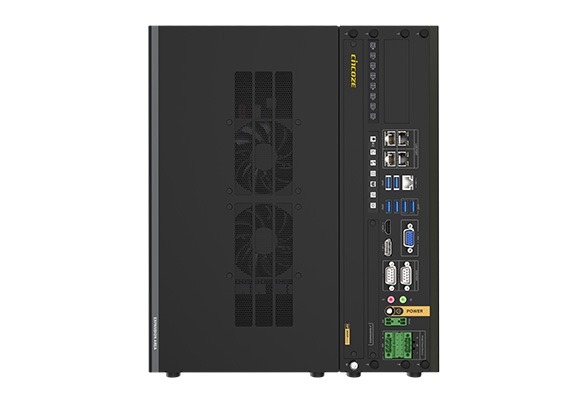

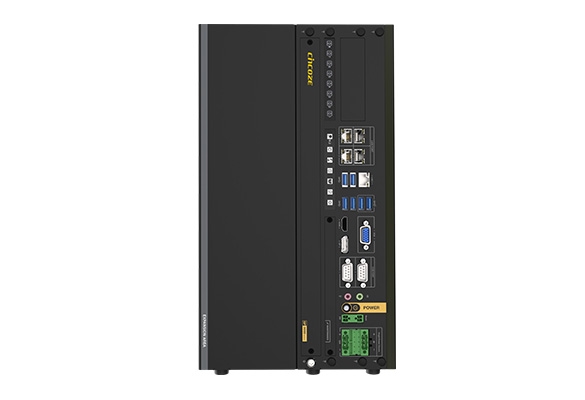

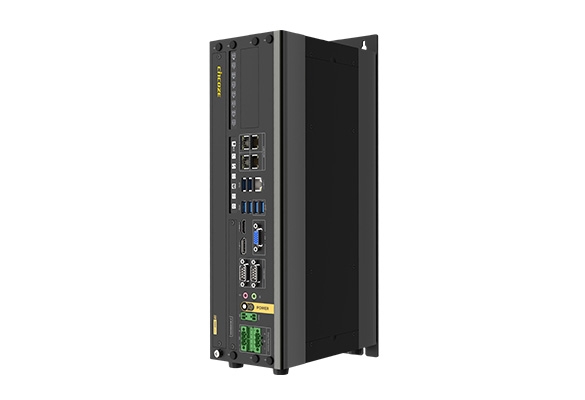

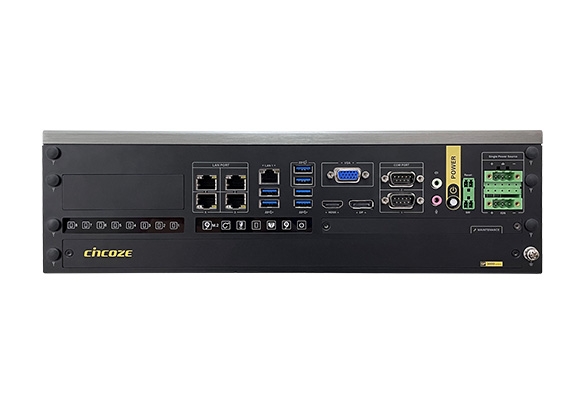

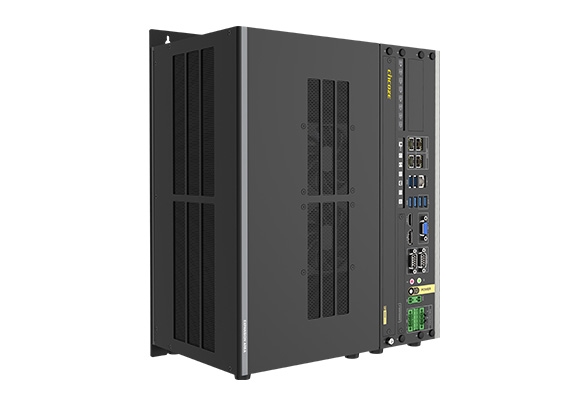

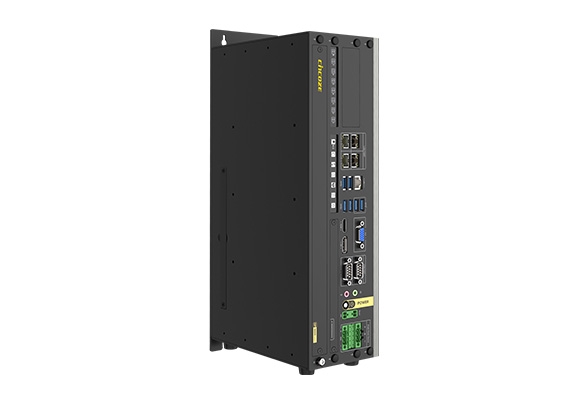

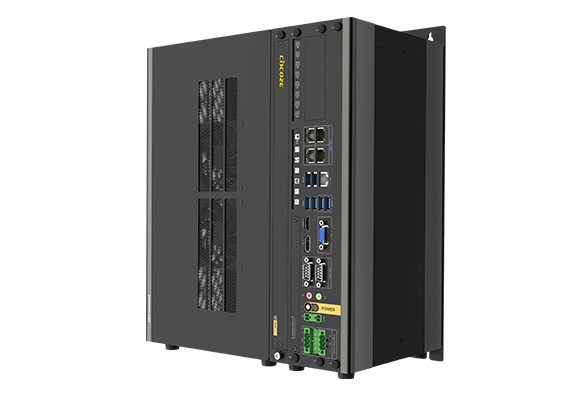

GP-3000

Dual Full-length GPU Expandable Computer

PRODUCTS FEATURES
  • Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)
  • 2 x DDR4 SO-DIMM Sockets, Supports ECC/non ECC type up to 2666 MHz, 64GB
  • 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
  • 1 x M.2 M Key Socket (NVMe), 1 x M.2 E Key Socket (CNVi)
  • 2 x Front Accessible SIM Card Slots for Signal Redundancy
  • CMI Technology for Various I/O Module Expansions
  • CFM Technology for Power Ignition Sensing & PoE Function
  • Versatile Mounting Methods (Wall / Desktop / Face-up / 19" Rack Mount)
  • Military Standard Shock & Vibration Proof
OVERVIEW

GPUs have evolved—and AI processing, simulation, and 3D graphics rendering have all benefited. Now, powerful GPU-based acceleration is baked into edge computing solutions to provide intensive processing parallelism and performance-driven analytics not possible with traditional PCs. Only these GPU systems can provide the real-time decision-making, predictive analytics, and optimized control at the edge needed to achieve the high efficiency and growth required for industrial operations. Powerful GPU computing drives these applications and necessitates dedicated robust hardware to provide processing and inferencing capabilities.

Cincoze is a professional provider of highly reliable and rugged embedded systems to support customers in the industrial field. Deploying our rugged, high-performance GP-3000 machine vision computer provides the power to manage the most complex artificial intelligence and machine vision workloads.

​Product Category >>>> Embedded GPU Computer

Machine Vision

Machine Vision

  • Vision guided robotics
  • Automated optical inspection
  • Artificial Intelligence
In-vehicle Computing

In-vehicle Computing

  • Autonomous driving
  • Predictive maintenance
  • Fatigue driving detection
Intelligent Transportation

Intelligent Transportation

  • Traffic monitoring
  • Environmental monitoring
  • Object screening
Security and Surveillance

Security & Surveillance

  • Object tracking & detection
  • Real-time pose estimation
  • Video analytics

Cutting-Edge Performance

Cutting-Edge
Performance

——

The GP-3000 is powered by a 9th generation Intel® Xeon®/Core™ processor and supports up to two 250 W high-end graphics cards adding blazing-fast performance for AI, machine learning, machine vision, and big data analysis. 9th generation Intel® processors are up to 34% percent faster than the previous generation. GP-3000 supports two ECC or non-ECC DDR4-2666 (up to 128 GB) for exceptional speed and responsiveness. The GP-3000 is one of the most formidable industrial AI and machine vision computers available today.




Scalability and Upgradability
With GEB

——

The GP-3000 provides an exclusive GPU Expansion Box (GEB), a scalable GPU solution for performance upgradability and flexibility. It supports the expansion of up to two 250 W 328 mm full-length graphics cards in the market. GP-3000 is the core processing unit, and a single- or dual-GPU GEB connects externally to add GPU processing power and other PCIe add-on cards.

Patent No. I779496
Scalability and Upgradability With GEB

Total Power Budget Up to 720W


Total Power Budget
Up to 720W

——

GP-3000 has a 720 W total system power budget and supports a wide range DC power input from 9 to 48 V for high-end GPU computing. GP-3000 can power up to 500 W for its GEB with its specialized power design, ideal for dual 250 W graphics cards.




Intelligent Cooling Design
for Enhanced Thermal Support

——

Better performance, higher power requirements. To solve the power consumption and thermal challenges, the GP-3000’s mechanical structure and isolated external smart fan kits on both sides of the chassis effectively dissipate heat under full workloads in extreme conditions.

Patent No. I778522
Intelligent Cooling Design for Enhanced Thermal Support

Multiple Native and Expandable I/O


Multiple Native and
Expandable I/O

——

GP-3000 has multiple native I/O interfaces built-in. Cincoze’s proprietary CMI/CFM modules offer customization for additional I/O or other functionality such as 8x GbE LAN/POE, 6x USB 3.2, and 2x 10 GbE LAN. GP-3000 supports four 2.5" hot-swap SATA SSDs and has one M.2 M key socket for NVMe SSD storage.


Robust Design
Enabling Reliable Operation

——

GP-3000 packs versatility and performance into a robust design for ultimate GPU computing. GP-3000 has passed a series stringent quality assurance tests and industry standards including MIL-STD-810G military standard, E-mark for in-vehicle applications and EN50155 (EN 50121-3-2 only) for rolling stock environments. It can withstand hot and cold temperature extremes, shock and vibration, and high electromagnetic radiation.

Robust Design Enabling Reliable Operation

VIDEO
SPECIFICATION
Model NameGP-3000
SystemProcessor• 9th Generation Intel Coffee Lake-R S Series CPU:
- Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W
- Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
- Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
- Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
- Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
- Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
- Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
- Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel Coffee Lake S Series CPU:
- Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W
- Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W
- Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W
- Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W
- Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W
- Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W
- Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W
- Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W
- Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W
- Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W
- Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W
- Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W
ChipsetIntel C246
Memory2x DDR4 2666/2400 MHz SO-DIMM Sockets
* Xeon/i7/i5: Up to DDR4 2666MHz
* i3/Pentium/Celeron: Up to DDR4 2400MHz
Supports ECC / non-ECC Type Up to 64GB
Graphics• Integrated Intel® UHD Graphics
  (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
• Supports Triple Independent Display (VGA/DisplayPort/HDMI)
AudioRealtek® ALC888, High Definition Audio
BIOSAMI BIOS
I/O InterfaceHDMI1x HDMI Connector (4096 x 2160 @ 30Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
VGA1x VGA Connector (1920 x 1200 @30Hz )
LAN5x GbE LAN, RJ45
- GbE1: Intel® I219-LM
- GbE2: Intel® I210
- GbE3: Intel® I210
- GbE4: Intel® I210
- GbE5: Intel® I210
Serial Port2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB2x 10Gbps USB 3.2 Gen2, Type A
4x 5Gbps USB 3.2 Gen1, Type A
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
Remote Power On/Off1x Remote Power On/Off, 2-pin Terminal Block
Remote Reset1x Remote Reset, 2-pin Terminal Block
AT/ATX Switch1x AT/ATX Mode Switch
Reset Button1x Reset Button
Clear CMOS Switch1x Clear CMOS Switch
StorageSSD/HDD4x 2.5" Front Accessible SATA HDD/SSD Bay (SATA 3.0),
Supports Up to 15mm in Height
M.21x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
RAIDSupports RAID 0 / 1 / 5 / 10
ExpansionPCIeOptional GPU Expansion Box
- 1 x PCIe x 4 + 1 x PCIe x 16
- 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4
Mini PCI Express2x Full-size Mini-PCIe Socket
M.21x M.2 Key E 2230 Socket, Supports Intel CNVi Module
1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD
Universal Bracket1x Universal Bracket
SIM Socket2x SIM Socket
Antenna Holes7x Antenna Holes
Cincoze Modular TechnologyCMI Interface1x High Speed CMI (Combined Multiple I/O) Interface
1x Low Speed CMI (Combined Multiple I/O) Interface
CMI ModuleOptional Modules:
- 4x GbE LAN, RJ45
- 4x GbE LAN, M12 A-Coded
- 2x 10GbE LAN, RJ45
- 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
- 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block
CFM Interface1x CFM(Control Function Module) IGN Interface
1x CFM(Control Function Module) PoE Interface
CFM ModuleOptional Module
• 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V
• 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W
MEC ModuleOptional Modules:
• 2x 5Gbps USB 3.2 Gen1, Type A
• 2x GbE LAN, RJ45
OtherFan2x Fan Kits ( Air-flow isolated from the electronics )
Instant RebootSupport 0.2sec Instant Reboot Technology
Super CapSuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9-48 VDC, Single Power Source
Total Power Budget720W (with GEB-3601-R10)
Connector2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A
- Dual power connect must be used at the same time due to 15A current limitation at each power connector.
Power SupplyOptional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply
PhysicalDimension ( W x D x H )105 x 195 x 370 mm
Weight Information8kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount
Unibody DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection30A
Operating SystemWindowsWindows® 10
LinuxSupport by project
EnvironmentOperating Temperature35W CPU: -40°C to 70°C
65W CPU: -40°C to 60°C
80W CPU: -40°C to 50°C
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
* 100% CPU and without thermal throttling
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 70°C (Non-condensing)
ShockMIL-STD-810G
VibrationMIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
MTBF441,283 hr
Fire ProtectionEN 45545-2
ORDERING INFORMATION
Available Models
Model No.Product Description
GP-3000-R109th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

Package Checklist
√ Wall Mount Bracket√ Rubber Foot Kit x 1
√ Desktop Mount Kit x 1√ Power Terminal Block Connector x 2
√ CPU Heatsink and Thermal Pad Kit√ Remote Function Terminal Block Connector x 2
√ Screw Pack x4

Optional GPU Expansion Box
Model No.Description
GEB-3301-R10GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots for GP-3000 Series
GEB-3601-R10GPU Expansion Box with 2x PCIe x 16 (Signal PCIe x 8), 1x PCIe x 4 and 1 x PCIe x 1 Slots for GP-3000 Series

Optional Accessories - I/O Module
Model No.Description
CMI-LAN01-R12/UB1412CMI Module with 4x Intel I210 GbE LAN, RJ45 Port /
1x Universal Bracket with 4x RJ45 Cutout for GP-3000 Series
CMI-M12LAN01-R12/UB1410CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN /
1x Universal Bracket with 4x M12 Cutout for GP-3000 Series
CMI-XM12LAN01-R10/UB1410CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports /
Universal Bracket with 4x M12 Cutout for GP-3000 Series
CMI-10GLAN02-R10/UB1428CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port /
1x Universal Bracket with 2x RJ45 Cutout for GP-3000 Series
CMI-COM04-R10/UB1403CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) /
1x Universal Bracket with 2x DB9 Cutout for GP-3000 Series
CMI-DIO04-R11/UB1418CMI Module with 16DIO (8in 8out) /
1x Universal Bracket with DIO Cutout for GP-3000 Series
MEC-USB-M102-30/UB1414Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable / 1 x Universal Bracket with 2x USB Cutout for GP-3000 Series

Optional Accessories - Function Module
Model No.Description
CFM-PoE07-R10CFM Module with PoE Function, Individual Port 25.5W
(Enable PoE function for CMI-LAN01-R12, CMI-M12LAN01-R12, CMI-XM12LAN01-R10)
CFM-PoE01CFM Module with PoE Function, Individual Port 25.5W
(Enable PoE function for onboard LAN 2 to LAN 5)
CFM-IGN03-R10CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Mounting Kit
Model No.Description
RM01-R1019" Rack Mount Kit for GP-3000
RM02-R1019" Rack Mount Kit for GP-3000/GEB-33 Series
RM03-R1019" Rack Mount Kit for GP-3000/GEB-36 Series

Optional Power Supply / Power Cord / Power Cable
Model No.Description
SDR-480-24DIN Rail Power Supply 480W 24V, SDR-480-24
HEP-1000-24Power Supply 1000W 24V, HEP-1000-24
US Power Cord1.8M US Power Cord, Stripped and Tinned End with Tube
EU Power Cord1.8M EU Power Cord, Stripped and Tinned End with Tube
Power Cable1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
DOWNLOADS
Datasheet
SubjectRelease DateDownload
GP-3000 Datasheet2021/05/13Download
Manual
SubjectRelease DateDownload
GP-3000 User Manual2023/07/28Download
Driver
SubjectRelease DateDownload
GP-3000 Audio Driver (Windows 10 Version)2021/02/23Download
GP-3000 Chipset Driver (Windows 10 Version)2021/02/23Download
GP-3000 COM Port Driver (Windows 10 Version)2021/02/23Download
GP-3000 Graphics Driver (Windows 10 Version)2021/02/23Download
GP-3000 ME Driver (Windows 10 Version)2021/02/23Download
GP-3000 Network Driver (Windows 10 Version)2021/02/23Download
Back to category
Loading...
