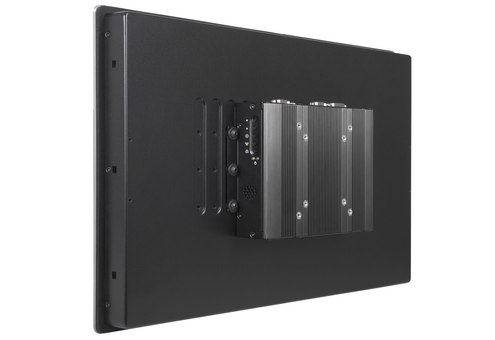

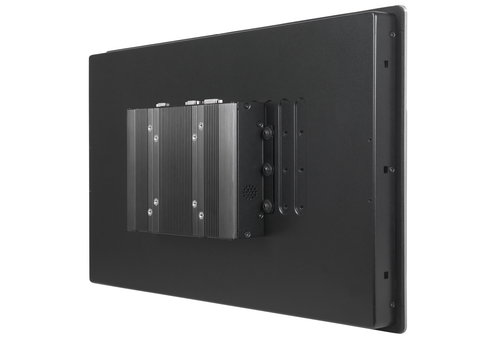

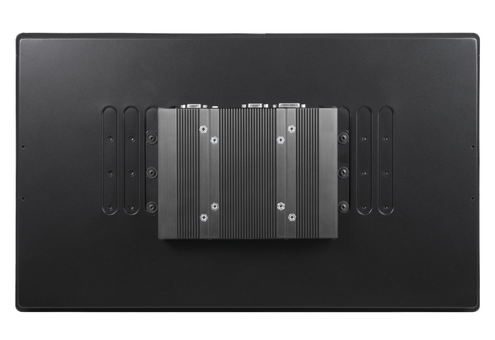

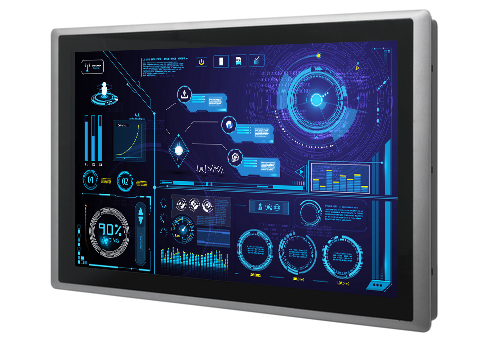

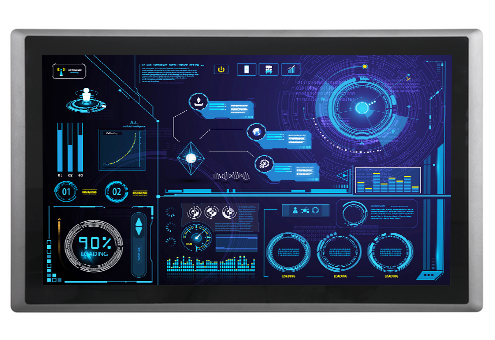

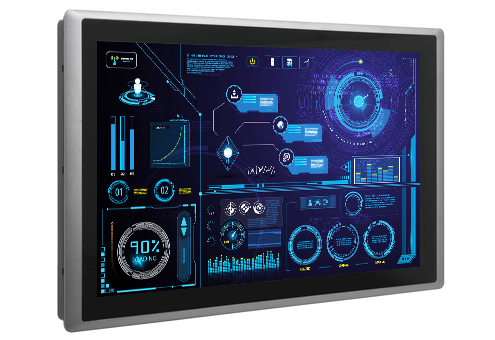

CV-W121 / M1001

21.5" TFT Full HD 16:9 Touch Monitor with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V

PRODUCTS FEATURES
  • 21.5" TFT Full HD 16:9 LCD with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only
  • Designed with Aluminum Die-Cast Front Frame
  • IP65 Compliant Front Panel
  • 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
  • Built-in Two 5W Internal Speakers
  • Convertible Display System (CDS) Supported
  • Supports Panel / VESA / Rack Mounting
OVERVIEW
The 21.5" (16:9) touch monitor with resistive 5-wire touch screen, projected capacitive touch screen, or glass screen offers resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. CV-W121/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-W121/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.
CV-W121/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-W121/M1001 is designed as an ideal solution for industrial application.
SPECIFICATION
Model NameCV-W121/M1001
Model No.CV-W121R/M1001CV-W121C/M1001CV-W121G/M1001
DisplayLCD Size21.5" (16:9)
Max. Resolution1920 x 1080
Brightness (cd/m2)300
Contrast Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wireV--
Projected Capacitive-V-
SystemVGA Input1
DVI-D Input1
DisplayPort Input1
USB 2.0 Input1
Audio Input1
COM Input1
Power Switch1
Other FeaturesAudio AMP 5W + 5W (Internal Speaker)
OSD FunctionLCD On/ LCD Off, Auto, Menu, Up and Down (Multi-language)
PowerPower Requirement9~48VDC
Connector3-pin Terminal Block Connector
Power AdaptorOptional AC/DC 12V/5A, 60W Power Adapter
EnvironmentOperating TemperatureAmbient with air flow: 0°C to 60°C
(With extended temperature peripherals; Ambient with air flow
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-20°C to 60°C
Relative humidity80% RH @ 40°C (Non-Condensing)80% RH @ 40°C (Non-Condensing)90% RH @ 40°C (Non-Condensing)
IP LevelIP65 Compliant Front Panel
PhysicalDimension (WxHxD)550 x 330.5 x 73 mm
Weight6.68 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-W121R/M100121.5" TFT Full HD 16:9 Display Module with Resistive 5-wire Touch, 1x USB,
1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V
CV-W121C/M100121.5" TFT Full HD 16:9 Display Module with Projected Capacitive Touch, 1x USB,
1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V
CV-W121G/M100121.5" TFT Full HD 16:9 Display Module without Touch, 1x USB,
1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V

Package Checklist
√Touch Monitor x 1
√Panel Mounting Kit x 1
√Utility DVD Driver x 1
√Power Terminal Block Connector x 1
√USB Cable x 1
√VGA Cable x 1
√Screw Pack x 1

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-W121 / M1001 Datasheet2018/08/29Download
Manual
SubjectRelease DateDownload
CV-100 / M1000 Series Manual2020/11/06Download
Driver
SubjectRelease DateDownload
M1001 Resistive Touch Driver (Windows Version)2016/01/07Download
