CV-W121 / P1001

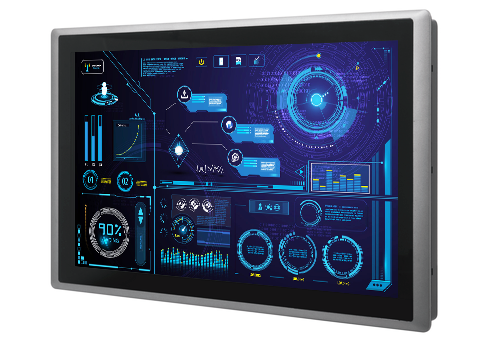

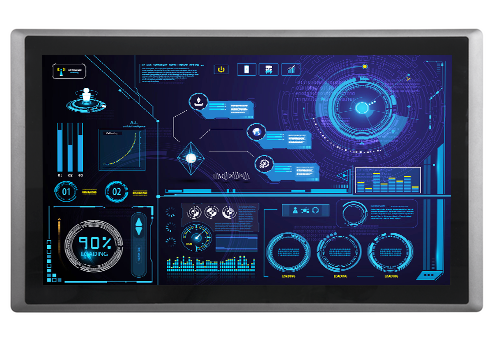

21.5" Intel® Atom E3845 Quad Core Processor Fanless Touch Panel PC with CDS Technology
PRODUCTS FEATURES
  • 21.5" Full HD TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM Socket, Support Up to 8 GB
  • Integrated Intel® HD Graphics Support Dual Display
  • 1x 2.5” SATA HDD Bay, 1x CFast Socket and 1x SIM Card Socket
  • IP65 Compliant Aluminum Die-Cast Front Frame
  • 1x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Support CDS Technology for Easy Maintenance
  • Rich I/O (2x GbE LAN, 2x COM, 4x USB, 8x Isolated DIO)
OVERVIEW

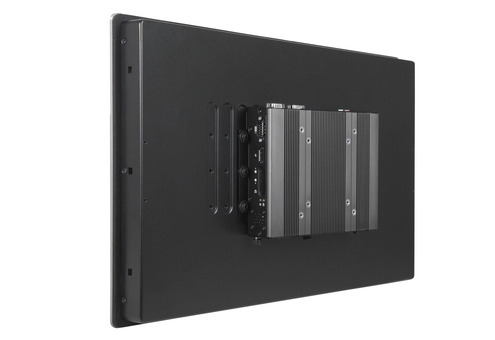

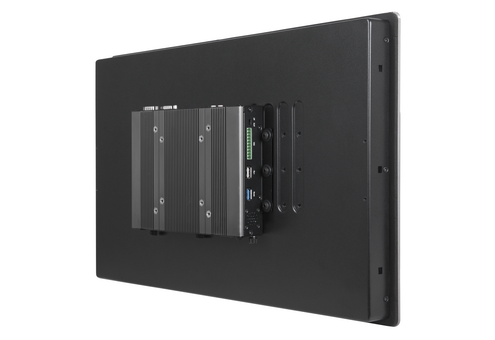

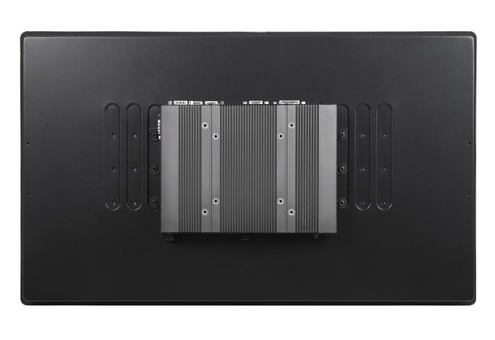

The 21.5" widescreen (16:9) all-in-one panel PC offers LED backlight LCD with resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. CV-W121/P1000 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame with rugged body structure that can be able to apply in industrial applications. CV-W121/P1000 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-W121/P1000 Series carries single-touch function with resistive 5-wire screen or multitouch function with projected capacitive screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-W121/P1000 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO .

CV-W121/P1000 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-W121/P1000 Series can be deployed and powered for various industrial applications.
SPECIFICATION
Model NameCV-W121/P1001
Model No.CV-W121R/P1001CV-W121C/P1001
DisplayLCD Size21.5" (16:9)
Max. Resolution1920 x 1080
Brightness (cd/m2)300
Contrast Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wireV-
Projected Capacitive-V
Processor SystemCPUIntel Atom E3845
Core Number4
Frequency1.91 GHz
Cache2 MB
Watts10W
MemoryTransfer RateDDR3L 1066/ 1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket1x 204-Pin SODIMM
GraphicsChipsetIntel® HD Graphics
Dual DisplayVGA + DP
VGA + CDS
DP + CDS
AudioInterfaceRealtek ALC888-GR, High Definition Audio
I/O InterfaceVGA1x DB-15 connector, CH7517, Up to 1920x1080@60Hz
DP1x DP connector, Up to 1920x1080@60Hz
LAN2x 10/100/1000 Mbps, RJ45
GbE1: Intel I210AT
GbE2: Intel I210AT
Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
POE+-
Serial Port2x RS-232/422/485, DB9
Support 5V/12V
USB 3.01x USB 3.0, Type-A
USB 2.03x USB 2.0, Type-A
DIO4 in/4 out
Line-Out1x Phone Jack 3.5mm
Mic-In1x Phone Jack 3.5mm
Power on/off switchV
Reset ButtonV
AT/ATX SwitchV
Remote Power On/Off Connector-
External FAN Connector-
StorageSSD/HDD1x Internal SATA port for 2.5” HDD/SSD
mSATA-
CFast1
SIM Card1
ExpansionPCI-
PCIe-
CFM Interface
(Control Function Module)
-
Mini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module
Universal I/O Bracket-
Antenna Holes2
Other FunctionCDS FunctionV
OSD FunctionLCD On/Off, Brightness Up/Down
(With Display Module)
Power Ignition Sensing-
Internal SpeakerAMP 2W + 2W
Super Cap-
Instant RebootV
Watchdog TimerSoftware Programmable Supports 1~255 sec. System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W Power Adapter
PhysicalDimension (WxHxD)550 x 330.5 x 72 mm
Weight Information6.9 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel/ Wall/ Arm/ VESA 75/100 Mounting
Fanless DesignV
Cable-less Design-
Jumper-less Design-
ProtectionReverse Power Input ProtectionV
Over Voltage ProtectionV
Over Current ProtectionV
ESD ProtectionV
Operating StystemWindowsWindows® 10
Windows® 8.1
Windows® 7
LinuxLinux® Kernel 3.X
EnvironmentOperating Temperature0°C to 60°C (With extended temperature  peripherals; Ambient with air flow
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
StorageTemperature-20°C to 60°C
Relative Humidity80% RH @ 50°C (Non-Condensing)
IP LevelIP 65 Compliant Front Panel
EMCCE,  FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-W121R/P100121.5" TFT Full HD 16:9 Panel PC with Resistive 5-wire Touch and Intel® Atom™ E3845 Quad Core PC Module,
4x USB, 2x COM, 1x VGA, 1x DisplayPort
CV-W121C/P100121.5" TFT Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort


Package Checklist
√Panel PC x 1
√Utility DVD Driver x 1
√Power Terminal Block Connector x 1
√Screw Pack x 1
√Panel Mounting Kit x 1
√DIO Terminal Block Connector x 1

Optional Accessories
Model No.Description
GSM60A12-CINAdapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
